CDC305 is a clock driver produced by TI company. This clock driver has TTL-compatible inputs and outputs, low skew between outputs, and eight outputs, four of which are synchronized with the CLK signal and four of which are out of phase with the CLK signal.

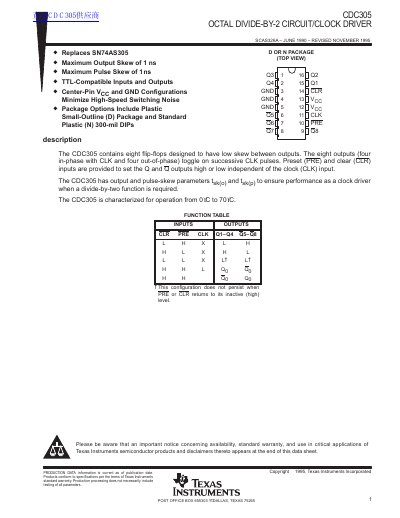

The CDC305 is an integrated circuit designed as an octal divide-by-2 circuit and clock driver. It contains eight flip-flops that toggle on successive clock pulses, providing four in-phase and four out-of-phase outputs relative to the clock input. The device features TTL-compatible inputs and outputs, with center-pin VCC and GND configurations intended to minimize high-speed switching noise.
| Operating Temperature Range | 0°C to 70°C |
|---|---|
| Maximum Output Skew | 1ns |
| Maximum Pulse Skew | 1ns |
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
| Clock Frequency | 0 to 80 MHz |
The device is characterized for operation from 0°C to 70°C.
Yes, it features TTL-compatible inputs and outputs.
