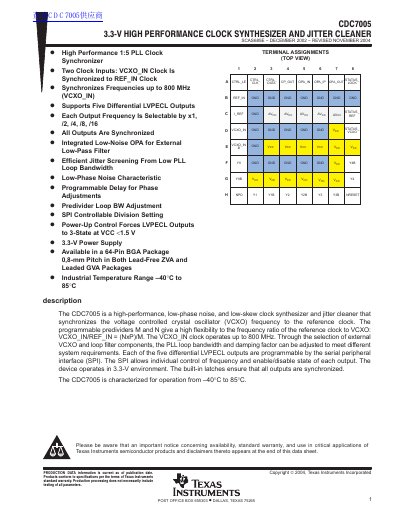

The CDC7005 is a high-performance, low-phase noise, and low-skew clock synthesizer and jitter cleaner. It synchronizes the voltage controlled crystal oscillator (VCXO) frequency to the reference clock using programmable predividers M and N. The device supports five differential LVPECL outputs, each of which is selectable by x1, /2, /4, /8, or /16.
| Supply Voltage | 3.3-V |
|---|---|
| Operating Temperature | -40 °C to 85°C |
| Package Type | 64-Pin BGA |
| Max VCXO_IN Frequency | 800 MHz |
| Output Type | Five Differential LVPECL |
Power-up control forces LVPECL outputs to 3-state at VCC <1.5 V.
Each output frequency is selectable by x1, /2, /4, /8, or /16 via SPI.
