FDC6323L is a high-density DMOS switch from Fairchild with extremely low on-resistance and very high switching speed. It is suitable for low voltage high side load switch applications where low conduction loss and ease of driving are needed.

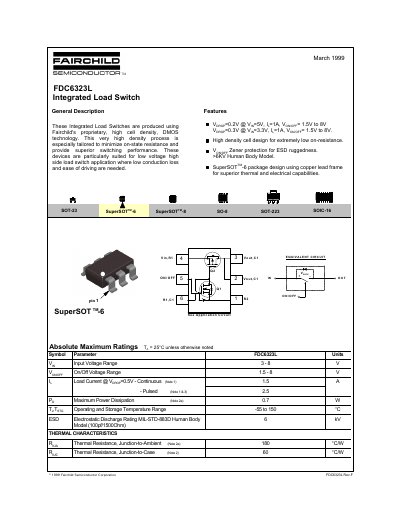

The FDC6323L is an integrated load switch produced using Fairchild's proprietary high cell density DMOS technology. It is designed to minimize on-state resistance and provide superior switching performance, making it suitable for low voltage, high side load switch applications where low conduction loss and ease of driving are required. The device integrates a small N-Channel Power MOSFET driving a large P-Channel Power MOSFET within a SuperSOT-6 package.
| On/Off Voltage Range | 1.5V to 8V |
|---|---|
| Load Current (Continuous) | 1.5 A |
| Load Current (Pulsed) | 2.5 A |
| Maximum Power Dissipation | 0.7 W |
| Operating Temperature Range | -55 to 150 °C |
| ESD Rating (Human Body Model) | 6 kV |
| Thermal Resistance (Junction-to-Ambient) | 180 °C/W |
| Thermal Resistance (Junction-to-Case) | 60 °C/W |
The input voltage range is 3V to 8V.
The maximum continuous load current is 1.5A.
The device uses a SuperSOT-6 package design.
