TN6715A is a NPN General Purpose Amplifier produced by Fairchild Semiconductor Corporation, suitable for general purpose medium power amplifiers and switches requiring a collector current of 1.2 A

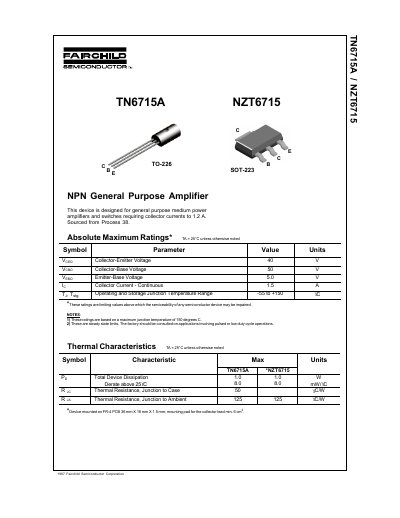

The document describes the TN6715A and NZT6715 devices as NPN General Purpose Amplifiers designed for medium power applications requiring collector currents up to 1.2 A. It details absolute maximum ratings such as a collector-emitter voltage of 40 V and an operating junction temperature range from -55°C to +150°C.
| Collector-Emitter Voltage (Vceo) | 40 V |
|---|---|
| Collector Current - Continuous | 1.5 A |
| Total Device Dissipation (TN6715A) | 1.0 W |
| Thermal Resistance, Junction to Case | 50 °C/W |
The device supports a continuous collector current of up to 1.5 A.
The maximum total device dissipation is 1.0 W.
The device must be derated by 8.0 mW per degree Celsius above 25°C.
