This document describes the features and characteristics of the 2N5771 and MMBT5771 PNP switching transistors, designed for very high-speed saturated switching with a maximum collector current of 100mA.

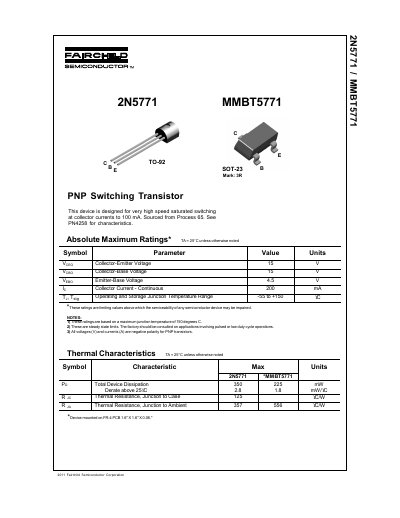

The document describes the Fairchild 2N5771/MMBT5771, a PNP switching transistor designed for very high-speed saturated switching at collector currents up to 100 mA. It is available in SOT-23 and TO-92 packages and is sourced from Process 65.
The datasheet details absolute maximum ratings, including a collector-emitter voltage of 15 V and an operating temperature range of -55°C to +150°C. It also lists electrical characteristics such as DC current gain, saturation voltages, and switching times, along with comprehensive tape and reel packaging data for both TO-92 and SOT-23 formats.
| Collector Current - Continuous | 200 mA |
|---|---|
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The device is designed for collector currents to 100 mA, with a continuous rating of 200 mA.
The operating and storage junction temperature range is -55 to +150 °C.
The transistor is available in SOT-23 and TO-92 packages.
