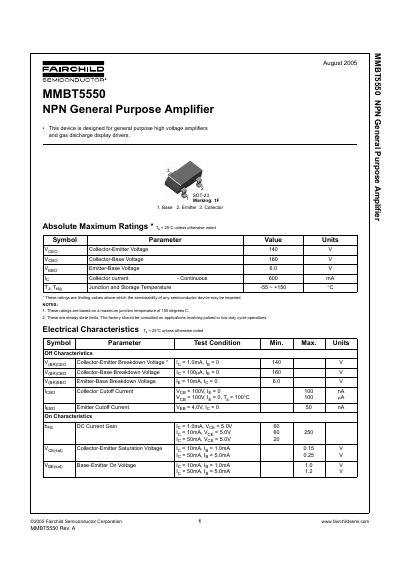

This document describes the features and characteristics of the MMBT5550 NPN general purpose amplifier, which is designed for high voltage amplifiers and gas discharge display drivers.
The document describes the MMBT5550, an NPN General Purpose Amplifier designed for high voltage amplifiers and gas discharge display drivers. It is available in the SOT-23 package and features a collector-emitter voltage rating of 140 V and a continuous collector current of 600 mA.
| Collector-Emitter Voltage | 140 V |
|---|---|
| Collector-Base Voltage | 160 V |
| Emitter-Base Voltage | 6.0 V |
| Collector current - Continuous | 600 mA |
| Junction and Storage Temperature | -55 ~ +150 °C |
| Total Device Dissipation | 350 mW |
| Thermal Resistance, Junction to Ambient | 357 °C |
| Package Type | SOT-23 |
The maximum collector-emitter voltage is 140 V.
The continuous collector current rating is 600 mA.
The junction and storage temperature range is -55 to +150 °C.
