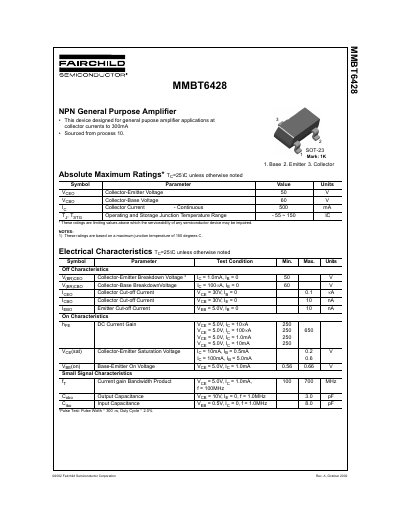

Fairchild MMBT6428 NPN General Purpose Amplifier Datasheet

This data sheet lists MMBT6428's absolute maximum ratings and electrical characteristics.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 46 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 46405514ADB26A5A27A9DDAD3F1F6E63
PDF: Fairchild MMBT6428 NPN General Purpose Amplifier Datasheet PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor MMBT6428, an NPN General Purpose Amplifier. The device is designed for general-purpose amplifier applications with collector currents up to 300mA and is sourced from process 10.

The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and bandwidth product, thermal resistance values, and small signal parameters such as input and output capacitance.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Package Dimensions
Tradeemarks
Disclaimer

Specifications

Continuous Collector Current	500 mA
Operating Junction Temperature Range	-55 ~ 150 °C
DC Current Gain (hFE) Min	250

Frequently asked questions

What is the maximum continuous collector current rating?

The device supports a continuous collector current of up to 500 mA.

What is the operating and storage junction temperature range?

The junction temperature ranges from -55 °C to 150 °C.

How much power can the device dissipate at 25°C?

The total device dissipation is rated for a maximum of 350 mW.
