The NZT560/NZT560A is an NPN low saturation transistor with high current gain and low saturation voltage, capable of continuous collector currents up to 3A.

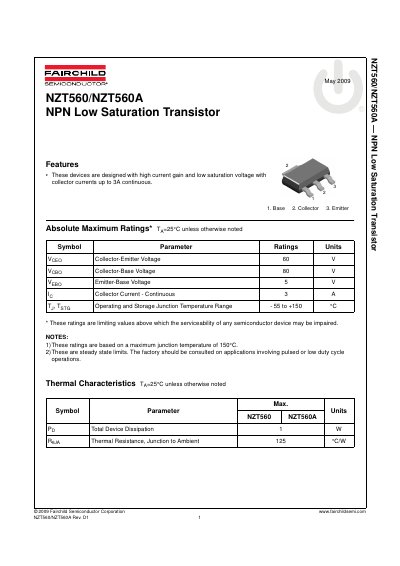

This document is a datasheet for the Fairchild Semiconductor NZT560 and NZT560A NPN low saturation transistors. These devices are designed with high current gain and low saturation voltage, supporting collector currents up to 3A continuous. The document provides absolute maximum ratings, thermal characteristics, and electrical specifications.
| Collector-Emitter Voltage | 60 V |
|---|---|
| Collector-Base Voltage | 80 V |
| Emitter-Base Voltage | 5 V |
| Collector Current - Continuous | 3 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1 W |
| DC Current Gain (Io = 100mA, Voge = 2V) | 70 |
| DC Current Gain (Io = 3A, Voge = 2V) | 25 |
The devices support collector currents up to 3A continuous.
The operating and storage junction temperature range is -55 to +150 °C.
The total device dissipation is 1 W.
