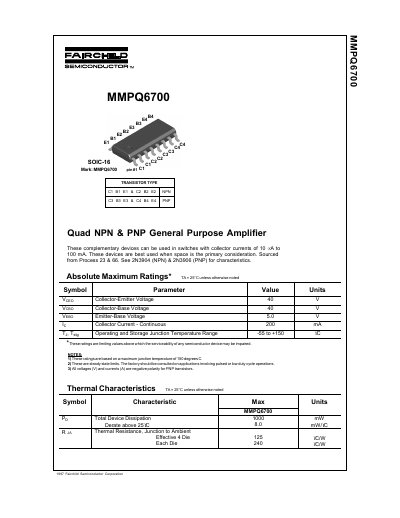

This document describes four general purpose amplifiers that can be used in switches with collector currents of 10 µA to 100 mA. These devices are best used when space is the primary consideration. Sourced from Process 23 & 66. See 2N3904 (NPN) & 2N3906 (PNP) for characteristics.
The Fairchild MMPQ6700 is a quad NPN and PNP general-purpose amplifier designed for use in switches with collector currents ranging from 10 mA to 100 mA. These complementary devices are optimized for applications where space is the primary consideration. The component is available in an SOIC-16 package.
| Collector-Emitter Voltage | 40 V |
|---|---|
| Collector Current - Continuous | 200 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1000 mW |
These devices are best used when space is the primary consideration.
Yes, users should refer to the 2N3904 (NPN) and 2N3906 (PNP) for characteristics.
