MMPQ2222 is a transistor produced by Fairchild Semiconductor Corporation. Its maximum current is 500mA, its maximum collector-emitter voltage is 30V, its maximum collector-base voltage is 60V, and its maximum emitter-base voltage is 5.0V.

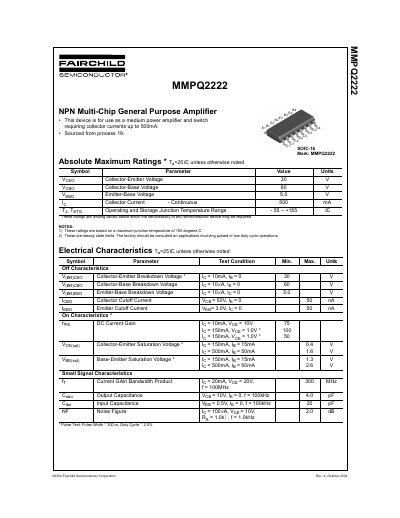

The document describes the MMPQ2222, an NPN multi-chip general-purpose amplifier designed for use as a medium power amplifier and switch requiring collector currents up to 500mA. It is sourced from process 19 and available in an SOIC-16 package.
| Collector-Emitter Voltage (VCEO) | 30 V |
|---|---|
| Collector-Base Voltage (VCBO) | 60 V |
| Emitter-Base Voltage (VEBO) | 5.0 V |
| Collector Current - Continuous | 500 mA |
| Operating Junction Temperature Range | -55 to +155 °C |
| Total Device Dissipation | 1000 mW |
The device supports a maximum continuous collector current of 500 mA.
The maximum collector-emitter voltage is 30 V, and the maximum collector-base voltage is 60 V.
The device operates within a junction temperature range of -55 to +155 °C.
