The MPS751 is a silicon PNP transistor manufactured by Fairchild Semiconductor Corporation. Its maximum collector-emitter voltage is -60V, maximum collector current is 2A, and maximum collector dissipation is 625mW. Its package is SOT-223.

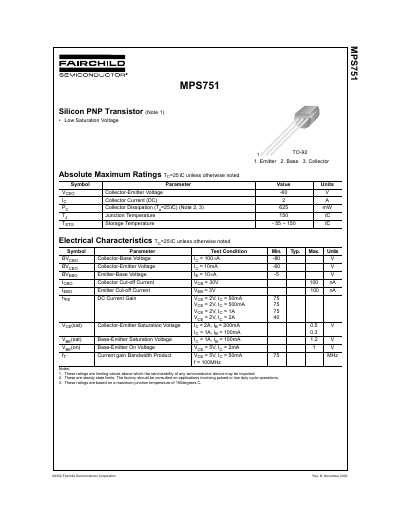

The document details the specifications for the MPS751 Silicon PNP Transistor. Key parameters include an absolute maximum collector-emitter voltage of -60V and a DC collector current rating of 2A. The device operates with a junction temperature limit of 150°C and features a typical DC current gain of 75 under specified test conditions.
| Collector Current (DC) | 2 A |
|---|---|
| Junction Temperature | 150 °C |
| DC Current Gain (Typ) | 75 |
The maximum DC collector current is 2 A.
The maximum junction temperature is 150 °C.
The minimum DC current gain is 40.
