This document provides information on the parameters and characteristics of the MMPQ2907 model, including voltage, current, temperature range, etc. This device is designed for general purpose amplifiers and switches requiring collector currents up to 500mA.

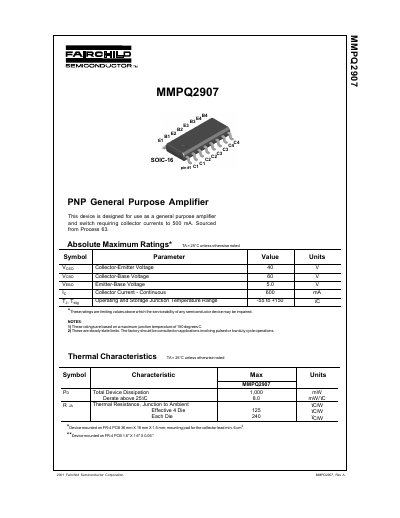

This document is a datasheet for the MMPQ2907, a PNP General Purpose Amplifier designed for use as an amplifier and switch requiring collector currents up to 500 mA. The device is sourced from Process 63 and is manufactured by Fairchild Semiconductor.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical characteristics including graphs for current gain, saturation voltage, and switching times. It also includes a Spice model for simulation purposes and trademark information.
| Collector-Emitter Voltage | 40 V |
|---|---|
| Collector-Base Voltage | 60 V |
| Emitter-Base Voltage | 5.0 V |
| Collector Current - Continuous | 600 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1,000 mW |
| Derate above 25°C | 8.0 mW/°C |
The device is designed for use as a general purpose amplifier requiring collector currents to 500 mA, with a continuous rating of 600 mA.
The operating and storage junction temperature range is from -55 to +150 °C.
