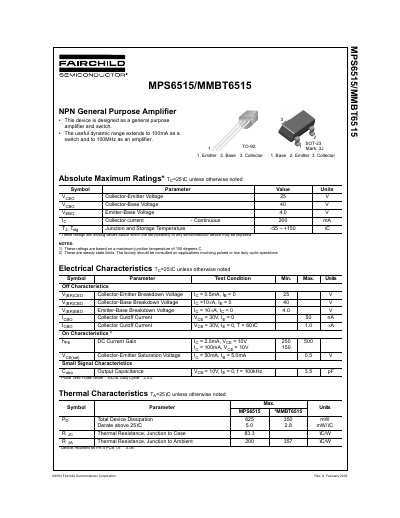

Fairchild MPS6515/MMBT6515 NPN General Purpose Amplifier Datasheet

MPS6515/MMBT6515 is a bipolar junction transistor manufactured by Fairchild Semiconductor Corporation

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: Chinese
Pages: 4
File format: PDF
File size: 103 KB
Published: 12 July, 2012
Updated: 30 September, 2023
Models: MPS6515, MMBT6515
MD5 checksum: 33E78826E8D69335EDC4928B8B252CAD
PDF: Fairchild MPS6515/MMBT6515 NPN General Purpose Amplifier Datasheet PDF

About this manual

This document is a datasheet for the Fairchild MPS6515/MMBT6515 NPN General Purpose Amplifier. It specifies the device's electrical characteristics, thermal properties, and absolute maximum ratings suitable for amplifier and switch applications. The document includes pinout diagrams and package dimensions for both SOT-23 and TO-92 packages. This manual is written in Chinese.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Package Dimensions
SOT-23
TO-92
NPN General Purpose Amplifier
Switch Applications
Amplifier Applications
Product Status Definitions

Specifications

Collector-Emitter Voltage	25 V
Collector-Base Voltage	40 V
Emitter-Base Voltage	4.0 V
Collector Current - Continuous	200 mA
Junction and Storage Temperature	-55 ~ +150 °C
Thermal Resistance, Junction to Case (SOT-23)	83.3 °C/W

Frequently asked questions

What are the applications for the MPS6515/MMBT6515?

This device is designed as a general purpose amplifier and switch.

What is the useful dynamic range for the MPS6515/MMBT6515?

The useful dynamic range extends to 100mA as a switch and to 100MHz as an amplifier.
