The document is about the parameter information of the MPSA55 series products, including voltage, current, power and temperature

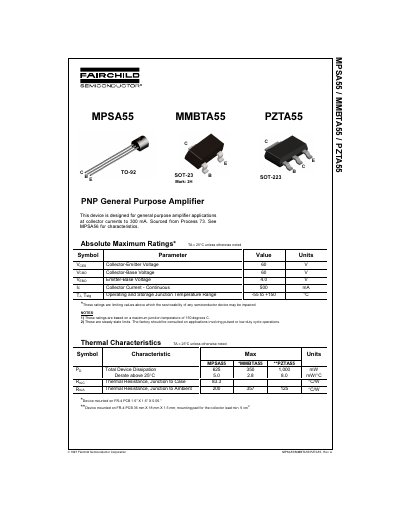

The document details the specifications for three models of PNP General Purpose Amplifiers: MPSA55 (TO-92), MMBTAS55 (SOT-23), and PZTA55 (SOT-223). It lists absolute maximum ratings such as a collector-emitter voltage of 60V and continuous collector current up to 500mA. The device is designed for general purpose amplifier applications at collector currents to 300 mA.
| Collector-Emitter Voltage (Vceo) | 60 V |
|---|---|
| Collector Current - Continuous | 500 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The continuous collector current rating is up to 500 mA.
The devices are available in TO-92, SOT-23, and SOT-223 packages.
