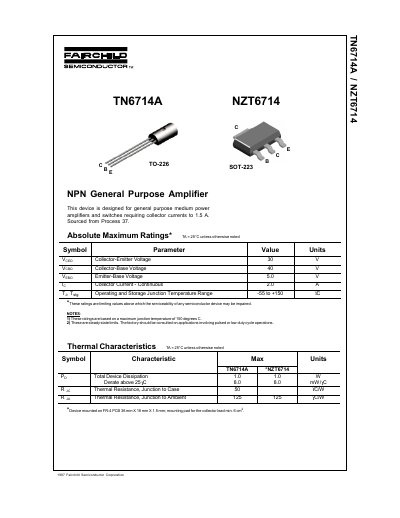

The TN6714A is a NPN general purpose amplifier from Fairchild Semiconductor Corporation. This device is designed for general purpose medium power amplifiers and switches requiring collector currents to 1.5 A.
The document describes the TN6714A and NZT6714, which are NPN general purpose amplifiers and switches designed for medium power applications requiring collector currents up to 1.5 A. The device is available in TO-226 and SOT-223 packages and is sourced from Process 37.
| Collector Current - Continuous | 2.0 A |
|---|---|
| Thermal Resistance, Junction to Case | 50 °C/W |
The device supports a continuous collector current of up to 2.0 A.
The device operates and stores within a junction temperature range of -55 to +150 °C.
