TN6729A is a PNP general purpose medium power amplifier and switch produced by Fairchild Semiconductor Corporation, with a collector current of up to 800 mA.

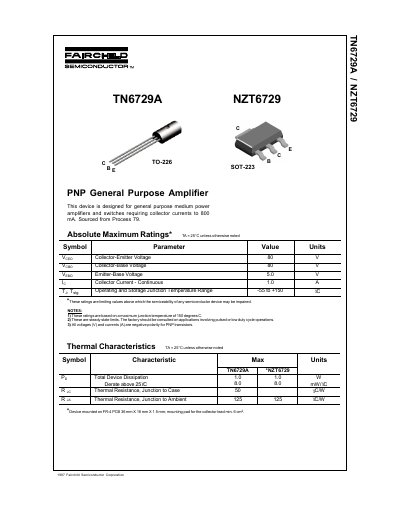

The TN6729A/NZT6729 is a PNP general purpose amplifier and switch designed for medium power applications requiring collector currents up to 800 mA. The device is available in TO-226 and SOT-223 packages and is sourced from Process 79. It features absolute maximum ratings including a collector-emitter voltage of 80 V and a continuous collector current of 1.0 A.
| Collector-Emitter Voltage | 80 V |
|---|---|
| Collector Current - Continuous | 1.0 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1.0 W |
| Thermal Resistance, Junction to Case | 50 °C/W |
The device supports a continuous collector current of 1.0 A.
