The KSD1616/1616A is an audio frequency power amplifier and medium speed switching device, with a rated voltage of 60V and 120V and a rated current of 1A and 2A.

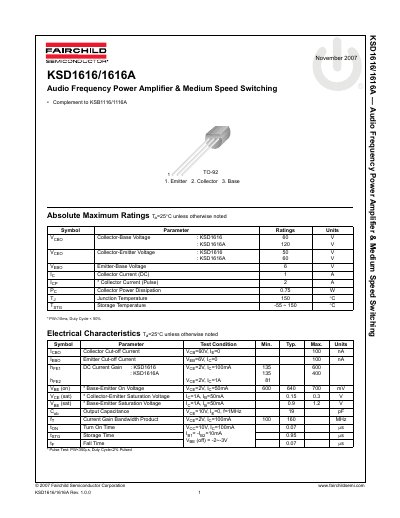

This document is a technical datasheet for the Fairchild Semiconductor KSD1616 and KSD1616A devices. These are NPN epitaxial silicon transistors designed to function as both audio frequency power amplifiers and medium speed switches, serving as a complement to the KSB1116/1116A series.
The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain (hFE), saturation voltages, and switching times. It also includes typical characteristic curves for static behavior, DC current gain, saturation voltage, capacitance, and switching time versus collector current.
| Collector-Base Voltage (KSD1616) | 60 V |
|---|---|
| Collector-Emitter Voltage (KSD1616) | 50 V |
| Emitter-Base Voltage | 6 V |
| Collector Current (DC) | 1 A |
| Collector Power Dissipation | 0.75 W |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
The DC current gain (hFE) ranges from 135 to 270.
The maximum collector power dissipation is 0.75 W.
The maximum junction temperature is 150 °C.
The maximum collector current is 1 A.
