The KSC2316 is a NPN type silicon transistor manufactured by Fairchild Semiconductor Corporation. Its maximum collector-emitter voltage can reach 120 V, and its maximum collector-emitter saturation voltage can reach 1 V. This tube is suitable for audio power amplifier applications, such as driver stage amplifier and KSA916 complement.

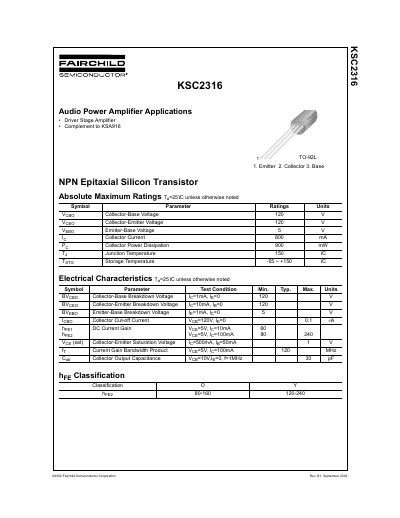

This document is a datasheet for the Fairchild Semiconductor KSC2316, an NPN epitaxial silicon transistor. It provides absolute maximum ratings, electrical characteristics, and typical performance curves for the device. The transistor is designed for audio power amplifier applications and serves as a driver stage amplifier or a complement to the KSA916.
| Collector-Base Voltage | 120 V |
|---|---|
| Collector-Emitter Voltage | 120 V |
| Emitter-Base Voltage | 5 V |
| Collector Current | 800 mA |
| Collector Power Dissipation | 900 mW |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ +150 °C |
| Package Type | TO-92L |
It is designed for audio power amplifier applications, specifically as a driver stage amplifier.
Yes, the KSC2316 is listed as a complement to the KSA916.
The typical DC current gain is 60 under these conditions.
