KSC1815 is a NPN type transistor released by Fairchild Semiconductor Corporation. Its package type is TO-92. This transistor has a high rated voltage and current, and is suitable for audio frequency amplifiers and high frequency oscillators.

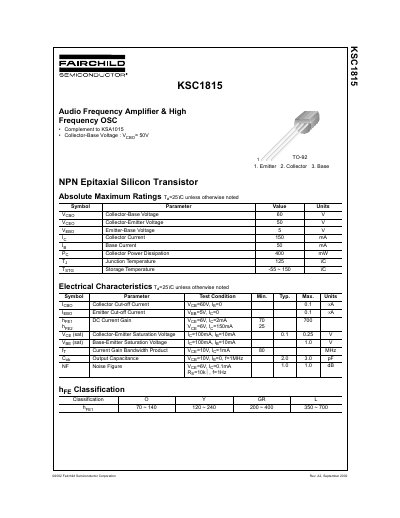

The document is a technical specification sheet for the KSC1815 NPN Epitaxial Silicon Transistor manufactured by Fairchild Semiconductor. It details the device's electrical parameters, including collector-emitter voltage ratings and DC current gain classifications.
The datasheet includes typical characteristic curves illustrating static characteristics, transfer characteristics, and frequency response. It also provides mechanical drawings with dimensions for the TO-92 package.
| Collector-Base Voltage (VCBO) | 60 V |
|---|---|
| Collector-Emitter Voltage (VCEO) | 50 V |
| Emitter-Base Voltage (VEBO) | 5 V |
| Collector Current (IC) | 150 mA |
| Collector Power Dissipation (PC) | 400 mW |
| Junction Temperature (TJ) | 125 °C |
| Storage Temperature (TSTG) | -55 ~ 150 °C |
It is designed for use as an Audio Frequency Amplifier and High Frequency OSC.
The device is housed in a TO-92 package.
