KSC2328A is a NPN type silicon transistor produced by Fairchild Semiconductor Corporation. Its maximum collector-base voltage is 30V, maximum collector-emitter voltage is 30V, maximum emitter-base voltage is 5V, maximum collector current is 2A, maximum collector power dissipation is 1W, maximum junction temperature is 150℃, and maximum storage temperature is -55℃ to 150℃.

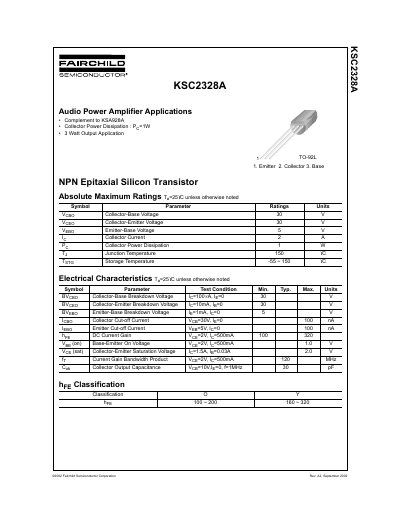

This document provides technical specifications for the KSC2328A, an NPN epitaxial silicon transistor designed for audio power amplifier applications. Key features include a collector power dissipation of 1W and a 3-watt output capability, serving as a complement to the KSA928A.
| Collector Power Dissipation | 1 W |
|---|---|
| Output Application | 3 Watt |
| Collector-Base Voltage | 30 V |
| Collector-Emitter Voltage | 30 V |
| Emitter-Base Voltage | 5 V |
| Collector Current | 2 A |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
| DC Current Gain | 100 ~ 320 |
| Current Gain Bandwidth Product | 120 MHz |
The device is housed in a TO-92L package.
The maximum junction temperature is 150 °C.
Yes, it is specifically designed for audio power amplifier applications.
