The KSC2383 is a NPN type transistor from Fairchild Semiconductor Corporation. Its maximum rated voltage is 160V, maximum rated current is 1A, and maximum rated power is 900mW. Its typical operating temperature is -55°C to 150°C.

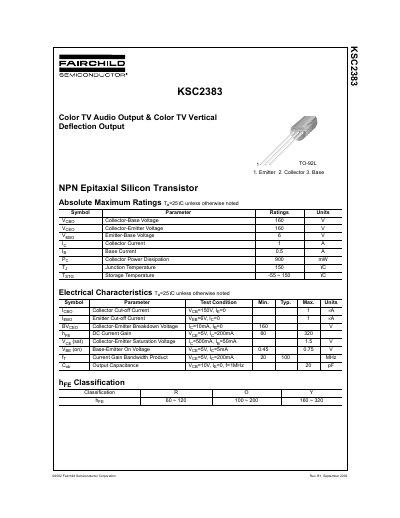

This document provides the design specifications for the KSC2383, an NPN epitaxial silicon transistor designed for use in color TV audio output and color TV vertical deflection output applications. The device is housed in a TO-92L package.
| Collector-Base Voltage | 160 V |
|---|---|
| Collector-Emitter Voltage | 160 V |
| Emitter-Base Voltage | 6 V |
| Collector Current | 1 A |
| Base Current | 0.5 A |
| Collector Power Dissipation | 900 mW |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
| DC Current Gain | 60 ~ 320 |
| Current Gain Bandwidth Product | 20 ~ 100 MHz |
The maximum collector current is 1 A.
The maximum collector power dissipation is 900 mW.
The maximum junction temperature is 150 °C.
