FJMA790 is a PNP epitaxial silicon transistor for load management in portable applications. It features high collector current and low collector-emitter saturation voltage.

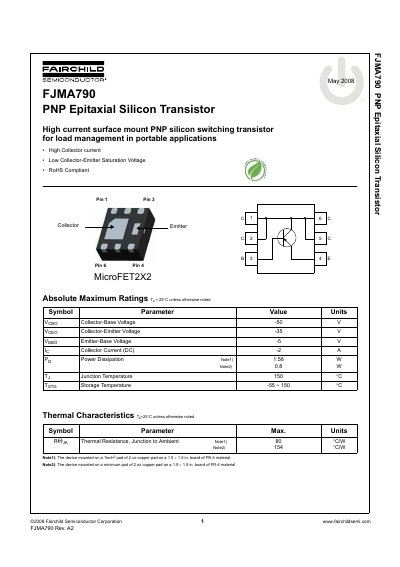

The document describes the Fairchild Semiconductor FJMA790, a high current surface mount PNP epitaxial silicon transistor. It is specifically designed for load management in portable applications and features RoHS compliance.
Key electrical characteristics include a maximum collector current of -2 A and low collector-emitter saturation voltage. The device operates with absolute maximum ratings such as a collector-base voltage of -50 V, a power dissipation of 1.56 W (under specific conditions), and a junction temperature up to 150 °C.
| Collector Current (DC) | -2 A |
|---|---|
| Power Dissipation | 1.56 W |
| Junction Temperature | 150 °C |
| Collector-Base Voltage | -50 V |
It has a power dissipation rating of 1.56 W under those conditions.
