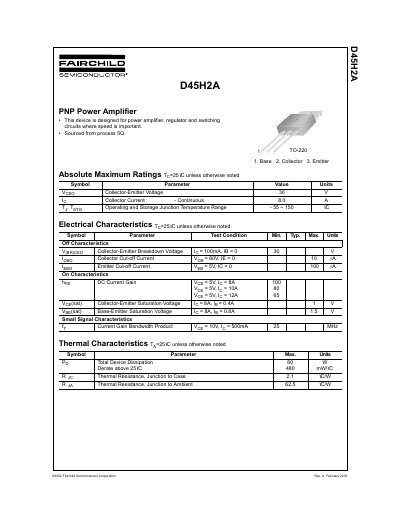

Fairchild D45H2A PNP Power Amplifier Datasheet

D45H2A is a PNP power amplifier designed for power amplifier, regulator and switching circuits where speed is important.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 33 KB
Published: 12 July, 2012
Updated: 29 September, 2023
MD5 checksum: 6E684809496D937E93086D9886427DC7
PDF: Fairchild D45H2A PNP Power Amplifier Datasheet PDF

About this manual

The document describes the Fairchild Semiconductor D45H2A, a PNP power amplifier designed for use in power amplifier, regulator, and switching circuits where speed is important. It details absolute maximum ratings, electrical characteristics such as current gain and saturation voltage, and thermal properties including total device dissipation.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Package Dimensions

Specifications

Collector Current - Continuous	8.0 A
Operating and Storage Junction Temperature Range	-55 ~ 150 °C
Total Device Dissipation	60 W

Frequently asked questions

What is the maximum continuous collector current for the D45H2A?

The device supports a continuous collector current of 8.0 A.

What is the maximum total power dissipation for the D45H2A?

The maximum total device dissipation is 60 W.

What is the maximum collector-emitter voltage rating?

The collector-emitter voltage rating is 30 V.
