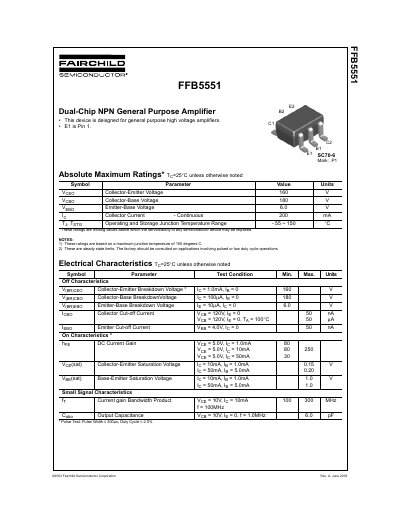

Fairchild Semiconductor FFB5551 Dual-Chip NPN General Purpose Amplifier Datasheet

This is the datasheet of FFB5551

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 113 KB
Published: 12 July, 2012
Updated: 01 October, 2023
MD5 checksum: A56311F193D495926B58310469F11A70
PDF: Fairchild Semiconductor FFB5551 Dual-Chip NPN General Purpose Amplifier Datasheet PDF

About this manual

The FFB5551 is a dual-chip NPN general-purpose amplifier designed for high-voltage applications. The device features a collector-emitter voltage rating of 160V and a collector-base voltage rating of 180V. It is housed in an SC70-6 package and operates within a junction temperature range of -55°C to 150°C.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Typical Characteristics
Package Dimensions
Tradeemarks
Disclaimer
Life Support Policy

Specifications

Collector-Emitter Voltage	160 V
Collector-Base Voltage	180 V
Emitter-Base Voltage	6.0 V
Collector Current - Continuous	200 mA
Operating and Storage Junction Temperature Range	-55 ~ 150 °C
Total Device Dissipation	200 mW
Thermal Resistance, Junction to Ambient	625 °C/W

Frequently asked questions

What is the maximum collector-emitter voltage?

The maximum collector-emitter voltage is 160 V.

What is the operating temperature range?

The operating and storage junction temperature range is -55°C to 150°C.

What is the maximum collector current?

The continuous collector current is 200 mA.
