The MMBT3904SL is a NPN type transistor produced by Fairchild Semiconductor Corporation. It is suitable for general switching and amplification and has a maximum package height of 0.43mm. It can be used as a complementary type of PNP MMBT3906SL

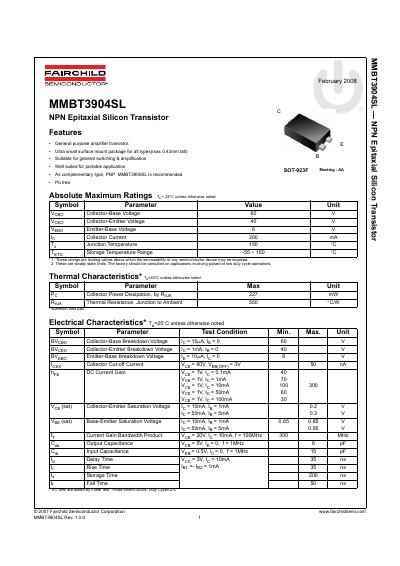

This document provides design specifications for the MMBT3904SL, an NPN epitaxial silicon transistor suitable for general-purpose amplification and switching applications. It is designed for portable applications and features an ultra-small SOT-923F surface mount package with a maximum height of 0.43mm.
| Collector-Base Voltage | 60 V |
|---|---|
| Collector-Emitter Voltage | 40 V |
| Emitter-Base Voltage | 6 V |
| Collector Current | 200 mA |
| Junction Temperature | 150 °C |
| Storage Temperature Range | -55 ~ 150 °C |
| Collector Power Dissipation | 227 mW |
| Thermal Resistance, Junction to Ambient | 550 °C/W |
| Package Type | SOT-923F |
| Lead Free Plating | Pure Tin(Matte) |
The maximum collector current is 200 mA.
The maximum junction temperature is 150 °C.
The maximum power dissipation is 227 mW.
