D45C8 is a PNP power amplifier with a collector-emitter voltage of -60V and a collector current of -4.0A.

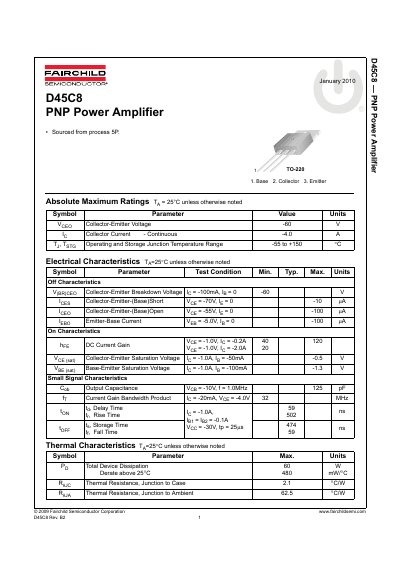

The document is a technical datasheet for the Fairchild Semiconductor D45C8, a PNP Power Amplifier. It details absolute maximum ratings, including a collector-emitter voltage of -60 V and a continuous collector current of -4.0 A.
The text lists specific electrical characteristics such as current gain (hFE) ranging from 40 to 120, along with small signal parameters like output capacitance and current gain bandwidth product. It also includes thermal resistance values and typical performance characteristic curves for voltage versus collector current.
| Collector-Emitter Voltage (Max) | -60 V |
|---|---|
| Collector Current (Continuous) | -4.0 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Current Gain (hFE) | 40 to 120 |
| Collector-Emitter Saturation Voltage (Max) | -0.5 V |
| Current Gain Bandwidth Product | 32 MHz |
The junction temperature range is from -55 to +150 °C.
