PN3640 is a PNP transistor designed for very high speed saturated switching at collector currents to 100 mA.
The document details the PN3640/MMBT3640 PNP switching transistor, designed for high-speed saturated switching at collector currents up to 100 mA. It includes absolute maximum ratings such as a collector-emitter voltage of 12 V and a total device dissipation of 350 mW. Electrical characteristics cover off-state breakdown voltages, on-state saturation voltages, and small signal parameters like current gain bandwidth up to 500 MHz.
| Collector-Emitter Voltage | 12 V |
|---|---|
| Collector Current - Continuous | 200 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The device is designed for collector currents to 100 mA, with a continuous rating of 200 mA.
The maximum junction temperature is 150 degrees C.

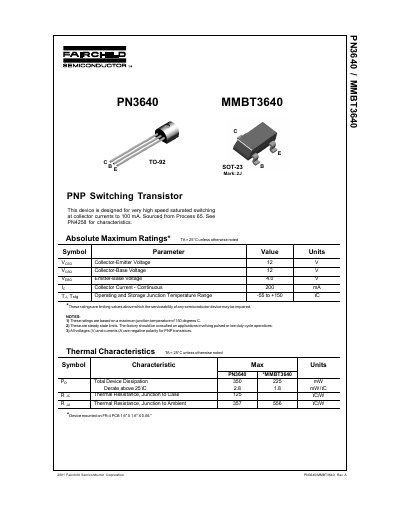

The datasheet provides data for TO-92 and SOT-23 packages.
