KST92/KST93 is a PNP type transistor produced by FAIRCHILD, which has high voltage, high current, wide SOA characteristics.

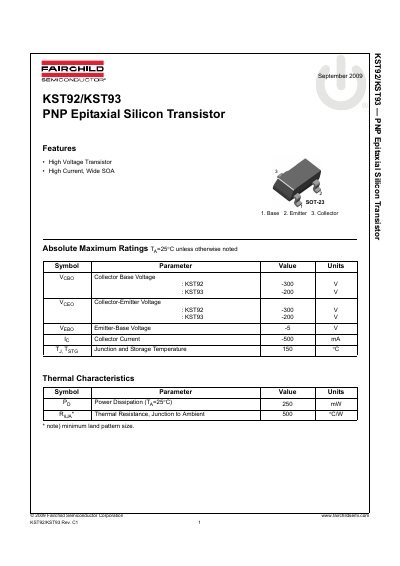

This document is a datasheet for the Fairchild Semiconductor KST92 and KST93 PNP epitaxial silicon transistors. It provides absolute maximum ratings, electrical characteristics, and typical performance characteristics for these high voltage devices. The KST92 model supports a collector-base voltage of -300 V, while the KST93 supports -200 V.
| Collector Base Voltage (KST92) | -300 V |
|---|---|
| Collector Current | -500 mA |
| Junction and Storage Temperature | 150 °C |
| Power Dissipation | 250 mw |
| Thermal Resistance, Junction to Ambient | 500 °C/W |
| Current Gain Bandwidth Product | 50 MHz |
The specified junction and storage temperature is 150 °C.
The power dissipation is 250 mW when Ta=25°C.
The KST92 has a rating of -300 Vv and the KST93 is rated at -200 Vv.
