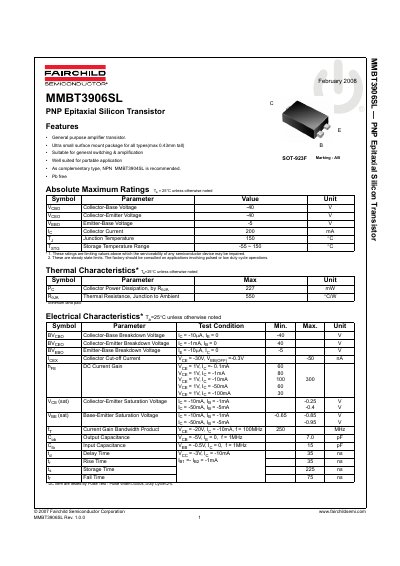

This document describes the features and characteristics of the MMBT3906SL PNP epitaxial silicon transistor, which is suitable for general amplification and switching applications, especially for portable devices. It is recommended to use it in conjunction with the complementary NPN model MMBT3904SL.
This document provides design specifications for the MMBT3906SL, a general-purpose PNP epitaxial silicon transistor suitable for amplification and switching applications. It is housed in an ultra-small SOT-923F surface mount package with a maximum height of 0.43mm and features lead-free pure tin plating.
The datasheet details absolute maximum ratings, thermal characteristics, and electrical parameters including DC current gain, breakdown voltages, and switching times. It also includes typical performance characteristics graphs and package dimensions for the SOT-923F case.
| Emitter-Base Voltage | 5 V |
|---|---|
| Package Type | SOT-923F |
| Lead Free Plating | Pure Tin(Matte) |
The document recommends the NPN MMBT3904SL as the complementary type.
Yes, it is well suited for portable applications due to its ultra-small surface mount package.
The ultra small surface mount package has a maximum height of 0.43mm.
