PN2484/MMBT2484 is a Fairchild NPN general purpose amplifier with low noise and high gain, suitable for current range from 1µA to 50mA.

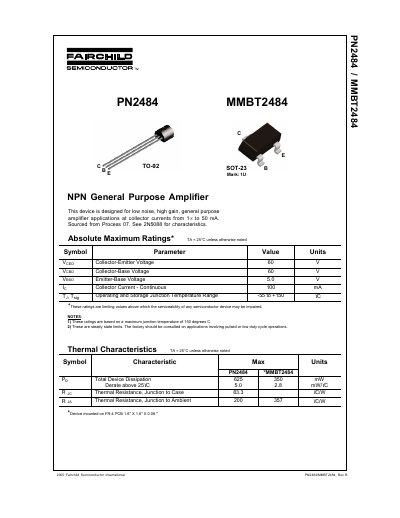

This document is a technical datasheet for the Fairchild Semiconductor PN2484 and MMBT2484 devices. These are NPN General Purpose Amplifiers designed for low noise and high gain applications operating at collector currents from 1 µA to 50 mA.
The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and breakdown voltages, and small signal parameters such as output capacitance and noise figure. It also details packaging information for the TO-92 package, including tape and reel specifications and dimensional drawings.
| Collector-Emitter Voltage (VcEo) | 60 V |
|---|---|
| Collector Current - Continuous | 100 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (Pp) | 625 mW |
| DC Current Gain (hFE) Min @ Ic=1.0 mA | 50 |
The device is designed for applications at collector currents from 1 µA to 50 mA.
The maximum operating and storage junction temperature range is -55 to +150 °C.
