FJX2907A is a PNP type transistor produced by Fairchild Semiconductor. Its maximum collector-emitter voltage is -60V, maximum collector-base voltage is -60V, maximum emitter-base voltage is -5V, maximum collector current is -600mA, maximum collector power dissipation is 325mW, and maximum storage temperature is 150°C.

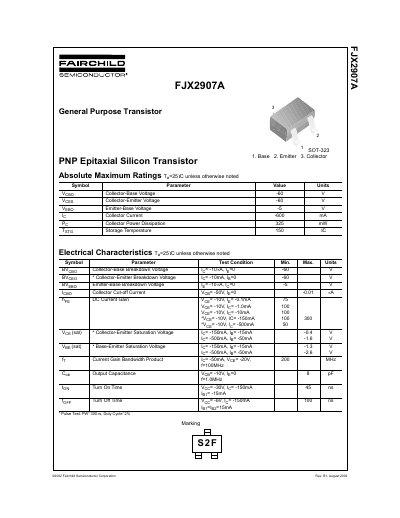

The document is a technical specification sheet for the Fairchild Semiconductor FJX2907A, a general-purpose PNP epitaxial silicon transistor. It outlines absolute maximum ratings such as collector-emitter voltage and power dissipation, along with electrical characteristics including DC current gain and switching times.
| Collector-Base Voltage (Vcbo) | -60 V |
|---|---|
| Collector-Emitter Voltage (Vceo) | -60 V |
| Emitter-Base Voltage (Vebo) | 5 V |
| Collector Current (Io) | -600 mA |
| Collector Power Dissipation (Po) | 325 mW |
| Storage Temperature (Tstg) | -150 to +150 °C |
No, Fairchild products are not authorized for use as critical components in life support devices without express written approval.
The device supports a maximum collector current of -600 mA and can dissipate up to 325 mW.
The component can be stored at temperatures as high as 150 °C.
