FMBA06 is a NPN multi-chip general purpose amplifier produced by Fairchild Semiconductor. Its absolute maximum ratings are: collector-emitter voltage is 80V, collector-base voltage is 80V, emitter-base voltage is 4.0V, collector current is 500mA, and working temperature range is -55 to +150°C.

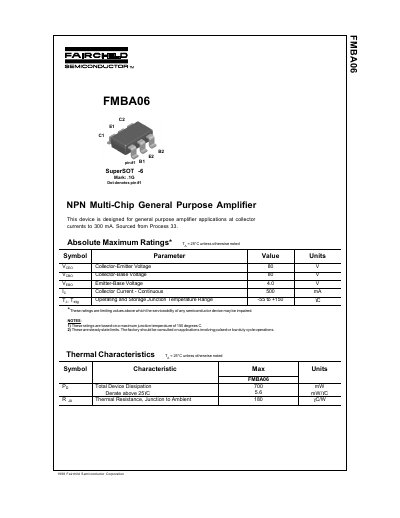

This document is a technical datasheet for the Fairchild Semiconductor FMBA06, an NPN multi-chip general-purpose amplifier. The device is designed for applications requiring collector currents up to 300 mA and operates within a junction temperature range of -55°C to +150°C.
The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and saturation voltage, small signal characteristics such as the current gain-bandwidth product, and typical performance curves. It also includes a Spice model for circuit simulation.
| Collector-Emitter Voltage (Vceo) | 80 V |
|---|---|
| Collector Current - Continuous | 500 mA |
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (Pp) | 700 mW |
| DC Current Gain (hFE) at Ic=10mA | 100 |
| Collector-Emitter Saturation Voltage (Vcesat) | 0.25 V |
| Current Gain - Bandwidth Product (fT) | 100 MHz |
The device supports a maximum continuous collector current of 500 mA.
The maximum collector-emitter voltage is rated at 80 V.
The total device dissipation is 700 mW.
