The MC3303/MC3403 is a quad operational amplifier with high gain, internally frequency compensated, designed to operate from a single power supply or dual power supplies over a wide range of voltages.

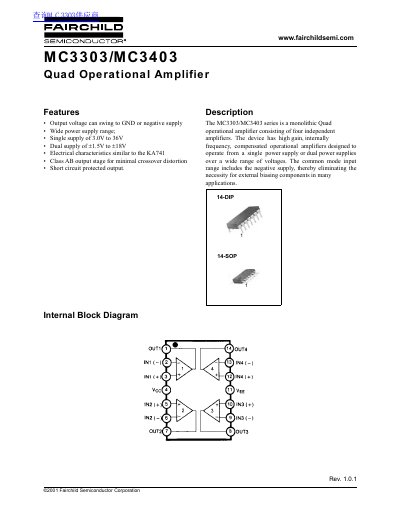

This document is a datasheet for the Fairchild Semiconductor MC3303/MC3403 series, which are monolithic quad operational amplifiers. The devices consist of four independent amplifiers designed to operate from single or dual power supplies over a wide voltage range. Key features include an output voltage swing capable of reaching ground or the negative supply, a Class AB output stage for minimal crossover distortion, and short circuit protection.
| Supply Voltage Range (Single) | 3.0V to 36V |
|---|---|
| Supply Voltage Range (Dual) | +1.5V to +18V |
| Operating Temperature (MC3303) | -40 to +85 °C |
| Operating Temperature (MC3403) | 0 to +70 °C |
| Power Dissipation | 670 mW |
The MC3303 operates from -40°C to +85°C.
The MC3403 operates from 0°C to +70°C.
Yes, the device features a short circuit protected output.
The maximum supply voltage is +36V for single supply or +18V for dual supply.
