KSA928A is an audio power amplifier, complement to KSC2328A, with collector power dissipation of 1W and 3 watt output application.

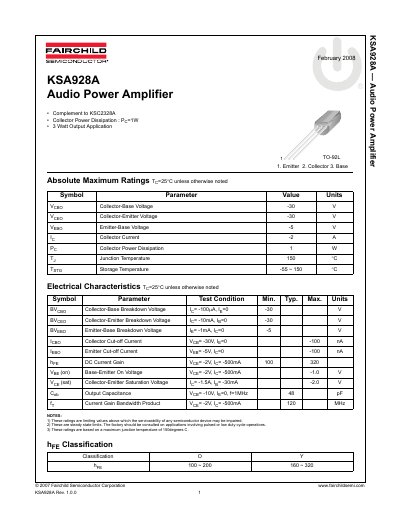

This document is a datasheet for the Fairchild Semiconductor KSA928A, a PNP epitaxial silicon transistor designed as a complement to the KSC2328A. It is intended for 3 Watt output applications and is packaged in a TO-92L case.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical performance characteristics. Key specifications include a collector power dissipation of 1W, a collector current of -2A, and a DC current gain ranging from 100 to 320. The device operates with a junction temperature up to 150°C.
| Collector Power Dissipation | 1 W |
|---|---|
| Collector Current | -2 A |
| Junction Temperature | 150 °C |
| Collector-Base Voltage | -30 V |
The maximum junction temperature is 150 °C.
The collector power dissipation is rated at 1 W.
It is designed for 3 Watt output applications.
