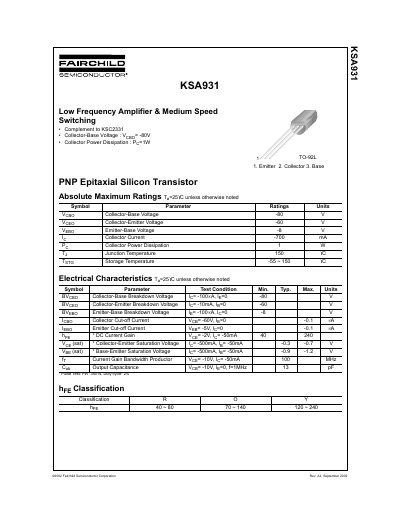

This document describes the absolute maximum ratings and electrical characteristics of the KSA931 PNP epitaxial silicon transistor released by Fairchild Semiconductor Corporation in 2002. The transistor is suitable for low frequency amplification and medium speed switching applications.
This document provides the design specifications for the Fairchild KSA931, a low frequency amplifier and medium speed switching PNP epitaxial silicon transistor. It includes absolute maximum ratings such as a collector-base voltage of -80V and a collector power dissipation of 1W.
| Collector-Base Voltage | -80 V |
|---|---|
| Collector Power Dissipation | 1 W |
| Collector Current | -700 mA |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
The device is packaged in a TO-92L package.
The pinout is Emitter (1), Collector (2), and Base (3).
