KSA992 is a PNP type audio frequency low noise amplifier produced by Fairchild Semiconductor Corporation. Its rated maximum voltage is -120V, maximum current is -50mA and maximum power is 500mW.

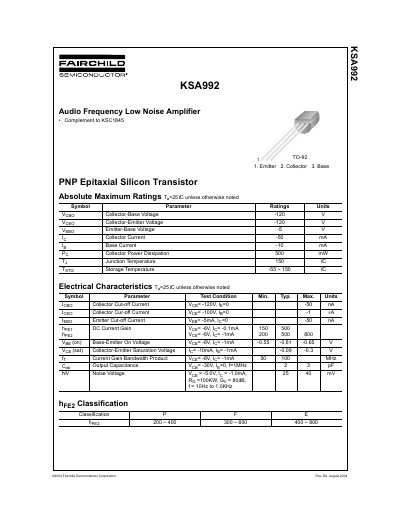

This document is a datasheet for the Fairchild Semiconductor KSA992, a PNP epitaxial silicon transistor designed as an audio frequency low noise amplifier. It serves as a complement to the KSC1845 device. The document provides absolute maximum ratings, electrical characteristics, and typical performance curves.
| Base Current | -10 mA |
|---|---|
| Collector Power Dissipation | 500 mW |
| Storage Temperature | -55 ~ 150 °C |
It is an audio frequency low noise amplifier.
Yes, the KSA992 is a complement to the KSC1845.
