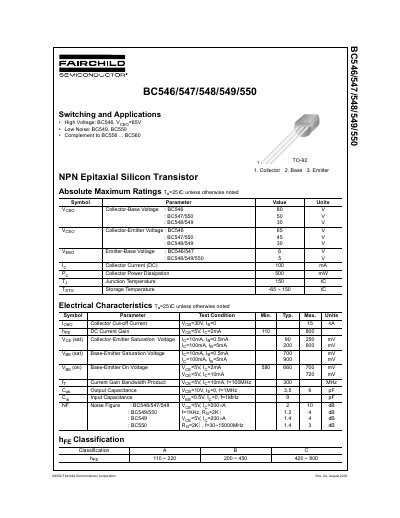

This document provides the characteristics parameters of BC546/547/548/549/550 NPN Epitaxial Silicon Transistor, including absolute maximum ratings, electrical characteristics, test conditions, etc.
This document provides technical specifications for the Fairchild Semiconductor BC546/547/548/549/550 series of NPN epitaxial silicon transistors. It includes absolute maximum ratings such as collector-base voltage, collector-emitter voltage, and power dissipation limits. This manual is written in Chinese.
| Collector Current (DC) | 100 mA |
|---|---|
| Collector Power Dissipation | 500 mW |
| Junction Temperature | 150 °C |
| Storage Temperature | -65 ~ 150 °C |
The BC549 and BC550 models are specified for low noise applications.
The maximum collector current is 100 mA.
The maximum junction temperature is 150 °C.
