This is a 11A, 60V, 0.107 Ohm, Logic Level, N-Channel Power MOSFETs, produced by Fairchild Semiconductor Corporation.

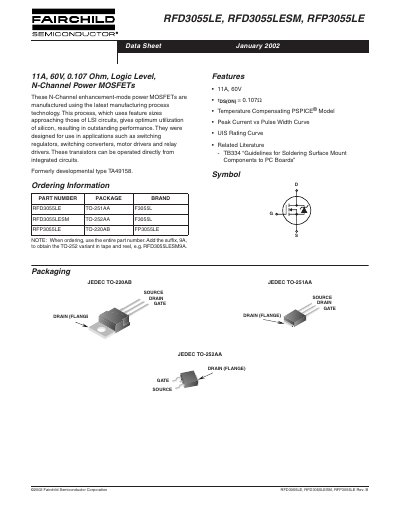

This document is a data sheet for the RFD3055LE, RFD3055LESM, and RFP3055LE N-channel enhancement-mode power MOSFETs. These devices are manufactured using advanced process technology suitable for switching regulators, converters, motor drivers, and relay drivers. They can be operated directly from integrated circuits.
| Continuous Drain Current | 20.0 A |
|---|---|
| Power Dissipation | 38 W |
| Drain to Source On Resistance | 0.107 Ω |
| Turn-On Time | 170 ns |
These transistors are designed for use in switching regulators, switching converters, motor drivers, and relay drivers.
The device supports a continuous drain current of 20 A.
The maximum temperature for soldering leads is 300 °C.
