RFG70N06, RFP70N06, RF1S70N06, RF1S70N06SM are N-channel power MOSFETs manufactured by Fairchild Semiconductor Corporation. They have a feature of 70A, 60V, 0.014 Ohm. They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits.

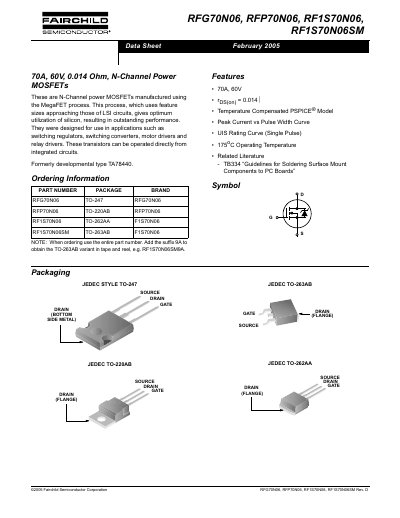

The document describes the RFG70N06, RFP70N06, RF1S70N06, and RF1S70N06SM as N-Channel power MOSFETs manufactured using the MegaFET process. These devices are designed for applications such as switching regulators, switching converters, motor drivers, and relay drivers, and can be operated directly from integrated circuits.
| Continuous Drain Current | 70 A |
|---|---|
| Power Dissipation | 150 W |
| Drain to Source On Resistance | 0.014 Ohm |
The available part numbers are RFG70N06, RFP70N06, RF1S70N06, and RF1S70N06SM.
These transistors were designed for use in switching regulators, switching converters, motor drivers, and relay drivers.
The device supports a continuous drain current of 70 A.
The device operates and stores within a range from -55 to 175 °C.
