APT12GT60BR 600V 25A is a new generation of high voltage power IGBTs, using Non-Punch Through Technology.

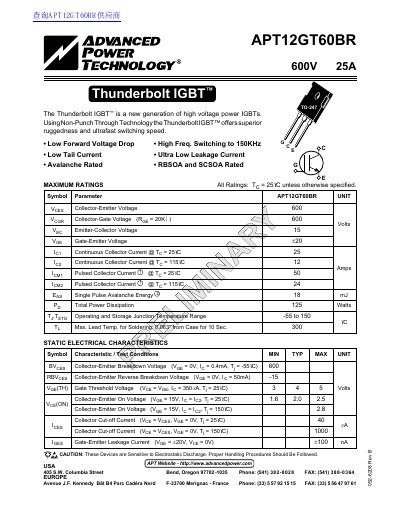

This document is a datasheet for the Advanced Power Technology APT12GT60BR, a high voltage power IGBT utilizing Non-Punch Through Technology. It highlights features such as superior ruggedness, ultrafast switching speed up to 150KHz, and low forward voltage drop.
The datasheet provides comprehensive technical specifications including maximum ratings for voltage and current, static electrical characteristics like breakdown voltage and on-resistance, dynamic characteristics such as switching times and energy losses, and thermal characteristics including junction-to-case resistance.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current @ Tc = 25°C | 25 Amps |
| Total Power Dissipation | 125 Watts |
| Operating and Storage Junction Temperature Range | -55 to 150 °C |
| Junction to Case Thermal Resistance | 1.0 °C/W |
The Thunderbolt IGBT offers high frequency switching up to 150KHz.
Yes, the device is avalanche rated.
The maximum lead temperature for soldering is 300°C for 10 seconds.
