APT12057JFLL is the model of APT's ISOTOP® Power MOS 7® N-Channel enhancement mode power MOSFET, which has the advantages of low conduction loss and high switching frequency.

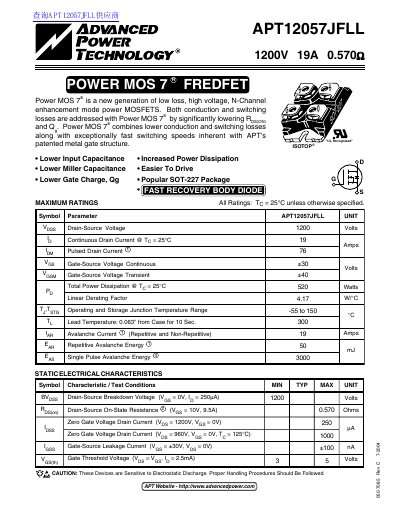

This document is a datasheet for the APT12057JFLL, a 1200V, 19A N-Channel enhancement mode Power MOSFET. It highlights the device's low conduction and switching losses, fast switching speeds, and the inclusion of a fast recovery body diode. The component is housed in an ISOTOP SOT-227 package.
| Continuous Drain Current | 19 Amps |
|---|---|
| Total Power Dissipation | 520 Watts |
| Operating Junction Temperature Range | -55 to 150 °C |
| Package Type | SOT-227 |
The device uses a SOT-227 package.
Yes, the datasheet specifies a fast recovery body diode.
The maximum operating and storage junction temperature is 150 °C.
