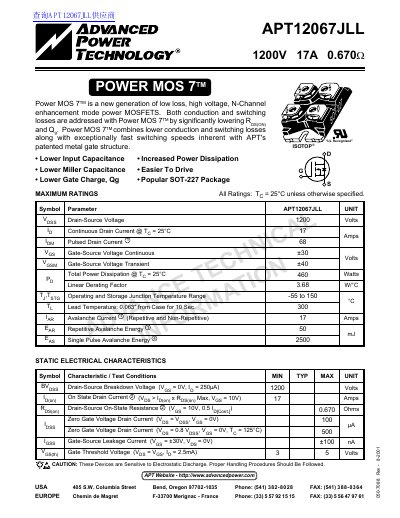

ADVANCED POWER TECHNOLOGY APT12067JLL 1200V 17A 0.670W handbook

This document is the technical data sheet of APT12067JLL, mainly introduces its electrostatic characteristics, maximum ratings, static electrical characteristics and other parameters

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 70 KB
Published: 12 July, 2012
Updated: 01 October, 2023
MD5 checksum: A047CD1379230C951A63C344FCBD552E
PDF: ADVANCED POWER TECHNOLOGY APT12067JLL 1200V 17A 0.670W handbook PDF

About this manual

This document is a technical datasheet for the APT12067JLL, an N-Channel enhancement mode power MOSFET from Advanced Power Technology. The device belongs to the Power MOS 7™ series and utilizes a patented metal gate structure (IsoTOP®) designed for low loss and high voltage applications.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Source-Drain Diode Ratings
Thermal Characteristics
Package Outline

Specifications

Drain-Source Voltage	1200 Volts
Continuous Drain Current	17 Amps
Pulsed Drain Current	68 Amps
Total Power Dissipation	460 Watts
Operating Junction Temperature Range	-55 to 150 C
Package Type	SOT-227

Frequently asked questions

What is the maximum continuous drain current for the APT12067JLL at 25°C?

The maximum continuous drain current is 17 Amps when the temperature is 25°C.

What is the total power dissipation rating at 25°C?

The total power dissipation is 460 Watts at a temperature of 25°C.

What is the operating and storage junction temperature range?

The operating and storage junction temperature range is from -55 to 150 C.
