The document provides performance curves and maximum ratings for the product with model APT150GN120J. This product is an IGBT device with low VCE(ON) and is ideal for low frequency applications.

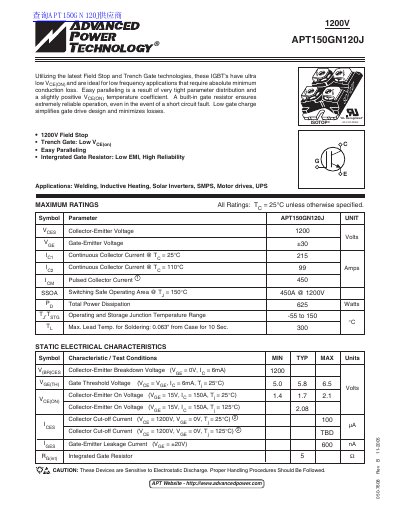

This document is a datasheet for the APT150GN120J, a 1200V Field Stop Trench Gate IGBT designed for low frequency applications requiring minimum conduction loss. Key features include ultra-low Vce(on), easy paralleling due to tight parameter distribution, and a built-in gate resistor to ensure reliable operation during short circuit faults. The device is suitable for applications such as welding, inductive heating, solar inverters, SMPS, motor drives, and UPS systems.
The device is ideal for welding, inductive heating, solar inverters, SMPS, motor drives, and UPS.
Yes, it features a built-in gate resistor of 5 Ω to ensure reliable operation and low EMI.
