This document describes the features and characteristics of the preliminary version of GC E TO-220 G C E, including maximum operating voltage, minimum and maximum operating temperature, and other parameters.

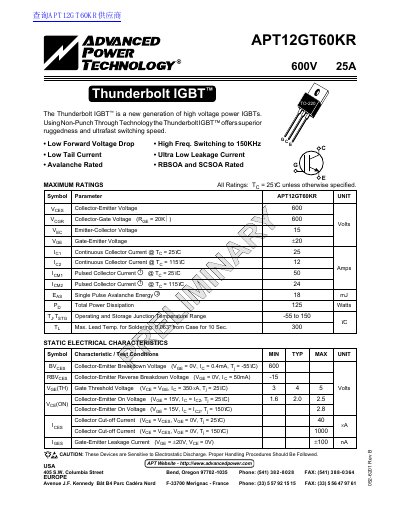

This document describes the Advanced Power Technology APT12GT60KR Thunderbolt IGBT, a high-voltage power device utilizing Non-Punch Through Technology. Key features include superior ruggedness, ultrafast switching speeds up to 150kHz, low forward voltage drop, and low tail current.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current (25°C) | 25 Amps |
| Total Power Dissipation | 125 Watts |
| Operating Junction Temperature Range | -55 to 150 °C |
| Input Capacitance | 580 pF |
The maximum continuous collector current at 25°C is 25 Amps.
The maximum total power dissipation is 125 Watts.
The operating and storage junction temperature range is -55 to 150°C.
