The FDP8447L is a N-Channel MOSFET produced by Fairchild Semiconductor. It uses PowerTrench technology to deliver low rDS(on), optimized BVDSS capability and fast switching. It is suitable for applications such as inverters and power supplies.

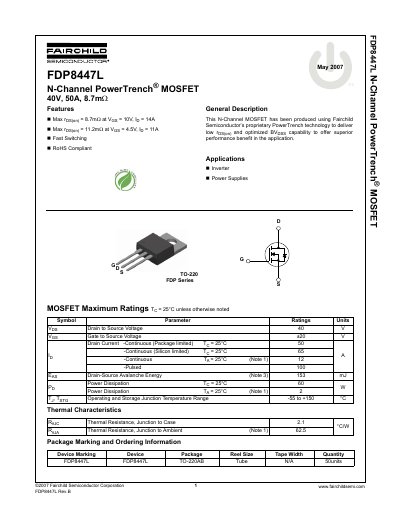

The document describes the Fairchild Semiconductor FDP8447L, an N-Channel MOSFET manufactured using proprietary PowerTrench technology. It is designed to deliver low drain-to-source on-resistance (rDS(on)) and optimized breakdown voltage capability for applications such as inverters and power supplies.
| Drain to Source Voltage (VDS) | 40 V |
|---|---|
| Gate to Source Voltage (VGS) | ±20 V |
| Continuous Drain Current (Package limited) | 50 A |
| Maximum On-Resistance (VGS=10V, ID=14A) | 8.7 mΩ |
| Maximum On-Resistance (VGS=4.5V, ID=11A) | 11.2 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
The device is suitable for use in inverters and power supplies.
Yes, the FDP8447L is RoHS Compliant.
