FDP8876 N-Channel PowerTrench® MOSFET is a high performance N-channel MOSFET with low gate charge, low rDS(ON) and fast switching speed.

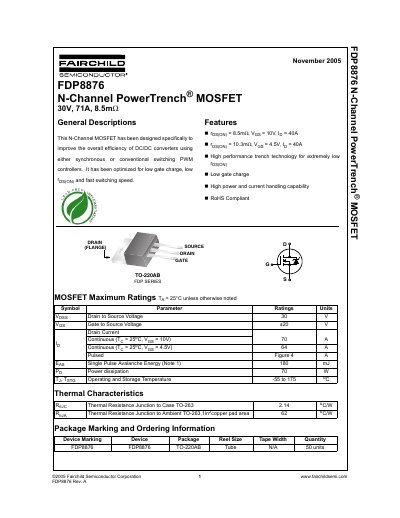

The document describes the Fairchild FDP8876, an N-Channel PowerTrench MOSFET optimized for low gate charge and fast switching speed. It is specifically designed to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
Key specifications include a drain-to-source voltage rating of 30V, a continuous drain current of up to 71A at 25°C with Vgs=10V, and a typical on-resistance (Rds(on)) of 8.5mΩ. The device is available in the TO-263 package.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Vgs=10V) | 70 A |
| Power Dissipation | 70 W |
| Operating Temperature Range | -55 to 175 °C |
| Package Type | TO-263 |
| On Resistance (Typical) | 8.5 mΩ |
It has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
Yes, the datasheet lists RoHS Compliant as one of its features.
