FDP8874 is a N-Channel PowerTrench® MOSFET from Fairchild Semiconductor Corporation. It is rated at 30V and 114A with a typical on-resistance of 5.3mΩ. It is mainly used in DC/DC converters.

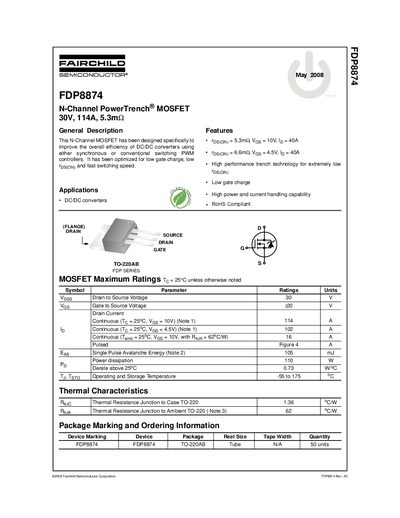

This document is a datasheet for the Fairchild FDP8874, an N-Channel PowerTrench MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. The device is optimized for low gate charge and fast switching speed.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Vgs=10V) | 114 A |
| Continuous Drain Current (Vgs=4.5V) | 102 A |
| Power Dissipation | 110 W |
| Operating and Storage Temperature | -55 to 175 °C |
| Thermal Resistance Junction to Case | 1.36 °C/W |
| Package Type | TO-220AB |
The maximum continuous drain current is 114 A at 25°C with Vgs = 10V.
Yes, the device is RoHS compliant.
The typical on-resistance is 5.3 mOhms at Vgs = 10V and Id = 40A.
