Fdp8896 is an n-channel power transistor from fairchild semiconductor corporation. It has a rated voltage of 30v, a rated current of 92a, and a rated on-resistance of 5.9mΩ. The device uses high-performance trench technology for extremely low on-resistance and low gate charge, and is suitable for applications such as dc/dc converters.

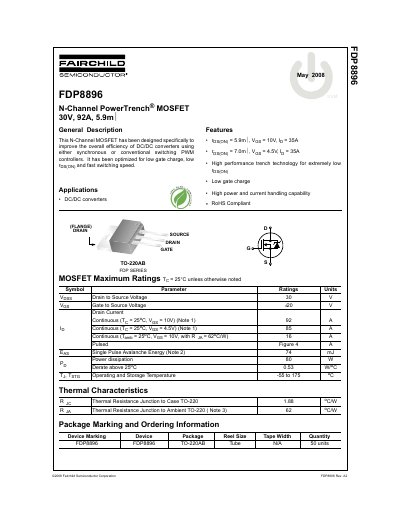

The document describes the Fairchild FDP8896, an N-Channel MOSFET optimized for low gate charge and fast switching speed. It is specifically designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers.
Key features include high performance trench technology for extremely low on-resistance (DS(ON)), RoHS compliance, and a maximum continuous drain current of 92A at 25°C. The device is available in a TO-220AB package.
| Drain to Source Voltage (Vdss) | 30 V |
|---|---|
| Continuous Drain Current (Tj=25°C, Vgs=10V) | 92 A |
| Power Dissipation | 80 W |
| Operating and Storage Temperature Range | -55 to 175 °C |
| Thermal Resistance Junction to Case (TO-220) | 1.88 °C/W |
The maximum continuous drain current is 92A when Vgs is 10V.
Yes, the device is listed as RoHS Compliant.
