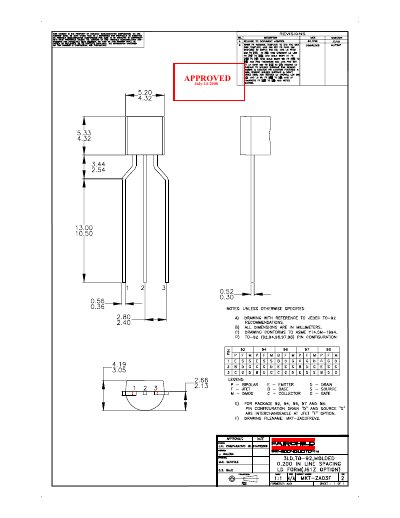

The document is a technical specification sheet for the MKT-ZA03F electronic component. It outlines the physical dimensions of the TO-92 molded plastic package and specifies that all measurements are provided in millimeters according to ASME Y14.5M—1994 standards.
The text details the pin configuration for various versions (92, 94, 96, 97, 98) of the TO-92 package. It includes a legend defining symbols such as P for Bipolar, E for Emitter, D for Drain, F for JFET, B for Base, S for Source, M for DMOS, C for Collector, and G for Gate.
The device uses a TO-92 package with specific pin assignments for Drain, Source, Gate, and other terminals.
Yes, for the JFET option, the Drain 'OD' and Source 'S' pins are interchangeable.
The molded package has a 0.200 inch line spacing.
