The FDP027N08B_F102 is an N-channel MOSFET produced by Fairchild. Its maximum voltage is 80V and its maximum current is 223A. Its typical on-state resistance is 2.21 mOhms.

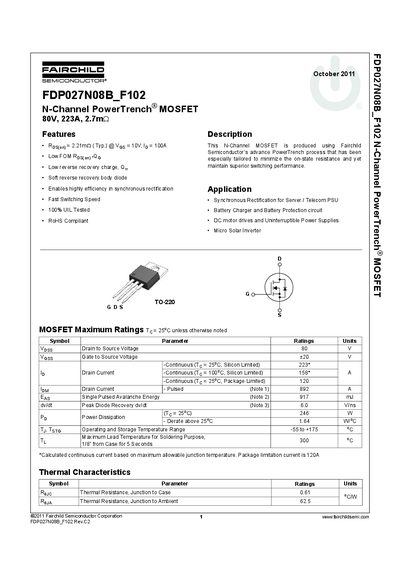

This document is a datasheet for the Fairchild FDP027N08B_F102, an N-Channel PowerTrench MOSFET. The device is designed for applications such as synchronous rectification in server and telecom power supplies, battery chargers, DC motor drives, and micro solar inverters. It features a low on-state resistance of 2.7mΩ (typical) and a soft reverse recovery body diode.
| Drain to Source Voltage | 80 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 120 A |
| Continuous Drain Current (Tc = 100°C) | 158 A |
| On-Resistance (Typical) | 2.7 mΩ |
| Operating Temperature Range | -55 to +175 °C |
| Package Type | TO-220 |
The thermal resistance from junction to case is 0.61 °C/W.
